OG Sensor Kit - Diesel
OG Sensor Kit - Diesel

OG Sensor Kit - Diesel

$941.00
These come standard with Bluetooth output to Torque Pro on an Android device. Would you like to add a OneGauge Standard LCD toucschreen?
OneGauge Universal Screen Housing/Mount Kit (3D printed) (for 7" or 10" only)
Tachometer Adapter

OneGauge Kits are built to order in the United States!

Free shipping in the United States for orders over $400.

The OG Sensor Kits offer less expensive kits for those who are looking for fewer options for customization. These standalone kits are ideal for carbureted or pre-2008 vehicles and offer a variety of options for sensor kits and screens. These kits DO NOT provide any connectivity to any ECUs – they come with standalone sensors/modules that are designed to work without connection to any vehicle computer systems. While our custom kits require us to write custom programming for each unit, we already have programming written for these OG Sensor Kits since they are all the same. This allows us to pass on savings compared to the identical configuration if built using the Custom Kit Builder. If these items are customized after purchase (e.g., adding a sensor not provided in the kit), OneGauge reserves the right to collect the discount that was saved – this protects us from anyone who tries to collect the discount while still requiring customization.

Please note that if you plan to upgrade or change/customize your dash in the future then you would be required to purchase a custom OneGauge kit which offers more options for future customization. Please visit the Custom page at https://theonegauge.com/product/onegauge-product-builder/

All OneGauge products are built to order and customized based on the customer’s needs. Each undergoes thorough testing as well, so kits are usually ready to ship 3-4 weeks after ordering. If lead time is a concern, please reach out to info@theonegauge.com.

 Each kit includes:

  • OneGauge Hub –  The central hub that connects to all of your sensors, encased in a 3D printed enclosure
    • Fuel level, voltage, turn signals, and 3 indicator inputs (12v triggered), and a tachometer (RPM) input is included in every setup. A tachometer adapter may be required and can be purchased separately, please see the installation instructions.
  • Power wires (6ft/2m)
  • Bluetooth connection to an Android Device – connects to Torque Pro or RealDash apps on any android device (device not included)
  • Optional 5", 7", or 10" LCD screen with 40+ pre-loaded gauge designs and themes. Customers can customize the design themselves if they choose. A 6ft/2m wiring harness is included to connect the hub to the screen.
    • Screen cases are optional. Please select a case above, or use the Vehicle-Specific Kits to purchase OG Sensor Kits matched with a vehicle-specific screen mount for your dash.
  • GPS speedometer that provides speed, compass, and altitude.
  • Odometer reading to track vehicle mileage.
  • All other features of the OneGauge system including gear calculations, programmable fuel level input, user defined thresholds for warning indicators, adjustable screen brightness, fuel efficiency tracking, lap and distance timing (1/4 mile, 1/8 mile, 0-60), and more!
  • Sensor kit of your choosing (see sensor list below) and 6ft wiring/harness for each sensor. If you need different connection options (OBD-II, Can Bus, aftermarket ECU) please use the Custom Kit Builder.
  • 3D printed instrument cluster that mounts in place of your factory cluster with no modification required. The 3D printed texture can easily be sanded and painted for a smooth finish if you choose!

Then, select the sensor kit from the three below packages!

Basic Gauge Kit:

  • Coolant Temperature Sender (1/8″ NPT)
  • Oil Pressure Sender (1/8″ NPT)

Advanced Sensor Kit:

  • Coolant Temperature Sender (1/8″ NPT)
  • Additional temp sensor (1/8″ NPT), typically used for oil or transmission temperature
  • Oil Pressure Sender (1/8″ NPT)
  • Vacuum/Boost sensor (1/8" NPT with 1/4" barb removable adapter)
  • Fuel pressure sensor (1/8″ NPT, 100 PSI default but other PSI ratings available)
  • Ambient (outside) temperature sensor

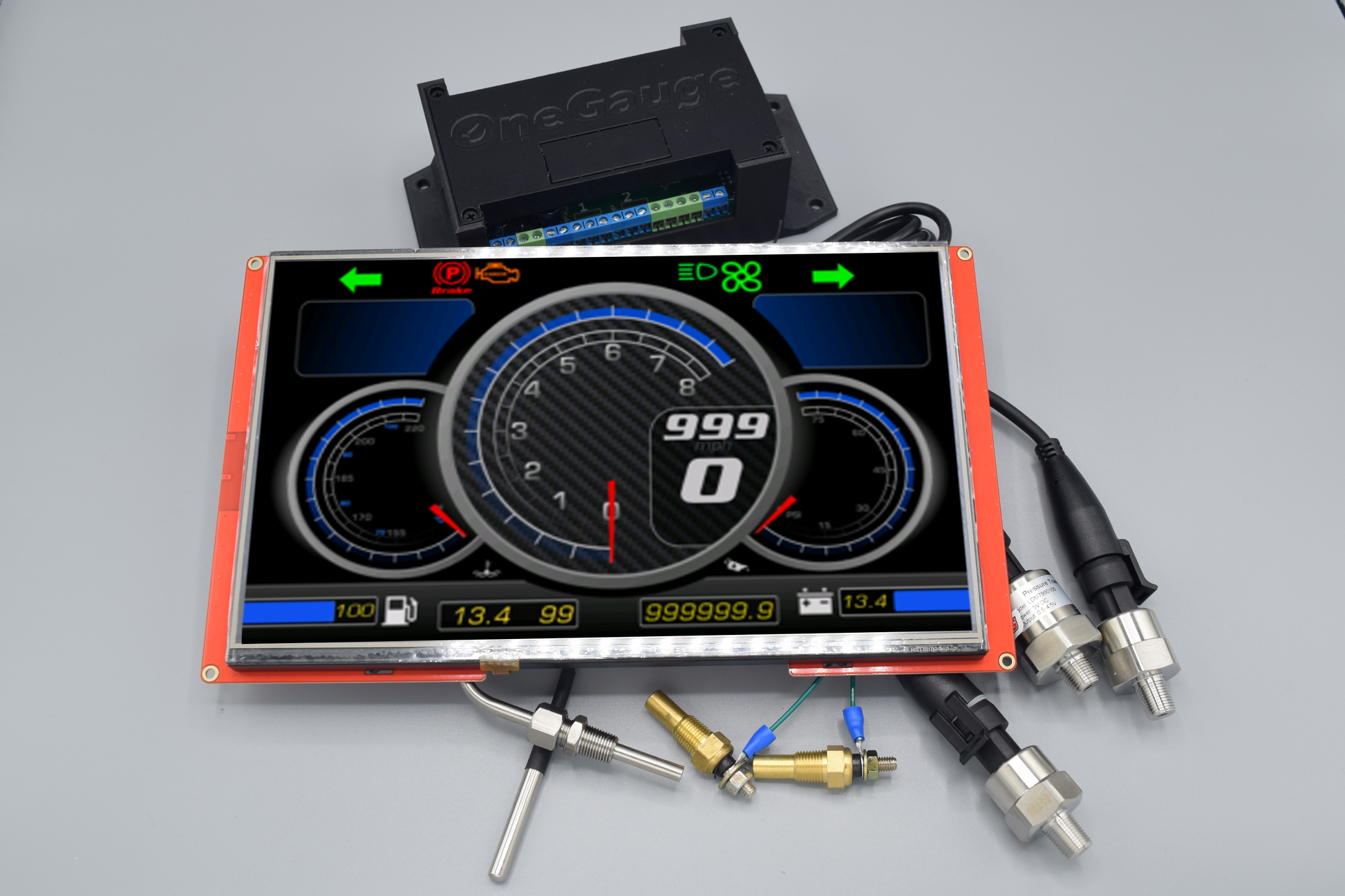

Diesel Sensor Kit:

  • Coolant Temperature Sender (1/8″ NPT)
  • Additional temp sensor (1/8″ NPT), typically used for oil or transmission temperature
  • Exhaust Gas temp sensor (1/8″ NPT)
  • Oil Pressure Sender (1/8″ NPT)
  • Boost Sensor (1/8″ NPT, up to 100 PSI) and 6ft harness
  • Fuel pressure sensor (1/8″ NPT, 100 PSI default but other PSI ratings available)
  • Ambient (outside) temperature sensor
