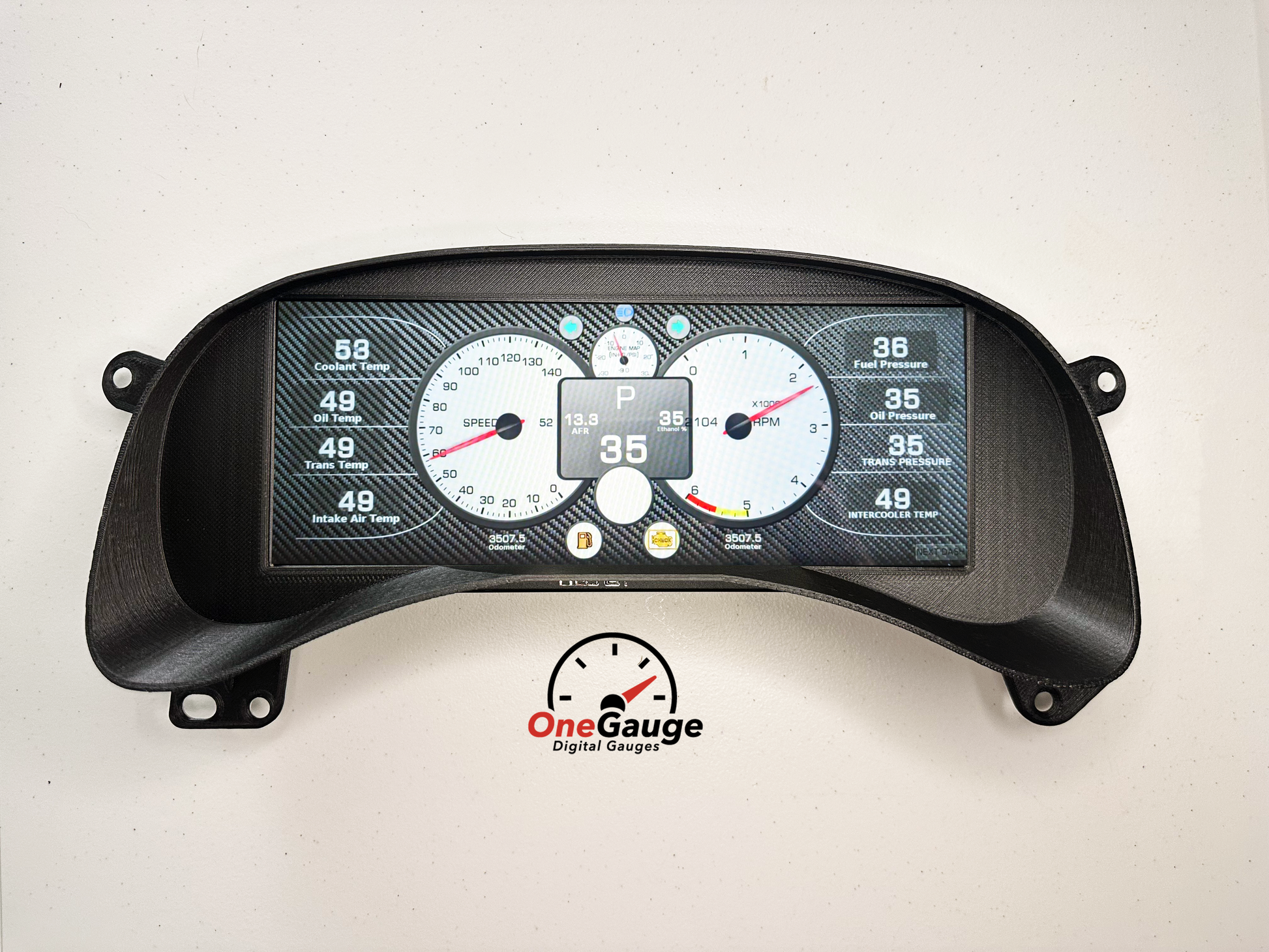

Chevy/GMC Full Size Truck (99-06) Widescreen Digital Dash
Chevy/GMC Full Size Truck (99-06) Widescreen Digital Dash

Chevy/GMC Full Size Truck (99-06) Widescreen Digital Dash

$1,950.00
Sensor Kit
Tachometer Signal Adapter
Automatic Transmission Gear Position

OneGauge Kits are built to order in the United States!

Free shipping in the United States for orders over $400.

We are now partnering with Reversion Raceworks to provide Chevy/GMC Truck instrument cluster replacements. This version is our top-of-the-line model and has an extra wide 12.3″ PiDash widescreen.

This kit includes:
  • OneGauge Hub –  The central hub that connects to all of your sensors, encased in a 3D printed enclosure
    • Fuel level, voltage, turn signals, and 3 indicator inputs (12v triggered), and a tachometer (RPM) input is included in every setup. A tachometer adapter may be required and can be purchased separately, please see the installation instructions.
  • Power wires (6ft/2m)
  • Bluetooth connection to an Android Device – connects to Torque Pro or RealDash apps on any android device (device not included)
  • 12″ fully customizable touchscreen. Customers can customize the design themselves if they choose using the screen itself.
  • GPS speedometer that provides speed, compass, and altitude.
  • Odometer reading to track vehicle mileage.
  • Sensor kit of your choosing (see sensor list below) and 6ft wiring/harness for each sensor. If you need to different connection options (OBD-II, Can Bus, aftermarket ECU) please use the Custom Kit Builder.
  • 3D printed instrument cluster that mounts in place of your factory cluster with no modification required. The 3D printed texture can easily be sanded and painted for a smooth finish if you choose!
  • Fully functional PiDash computer that runs the 12″ LCD screen. This can connect to the internet, play music, and do much more. A copy of a TunerStudio license ($100+ value) is included with purchase to allow customization of the screen and custom user actions and buttons. Please visit our Pidash wiki page for details on Pidash setups and answers to FAQs!
    • Optional add-ons include back-up camera, additional screens, and all of the other optional OneGauge features!
    • Customers can choose to order and assemble the Pidash themselves to save some money- please reach out to info@theonegauge.com and we can send you a custom invoice!

Basic Gauge Kit:

  • Coolant Temperature Sender (1/8″ NPT)
  • Oil Pressure Sender (1/8″ NPT)

Advanced Sensor Kit:

  • Coolant Temperature Sender (1/8″ NPT)
  • Additional temp sensor (1/8″ NPT), typically used for oil or transmission temperature
  • Oil Pressure Sender (1/8″ NPT)
  • Vacuum/Boost sensor (1/4″ port, up to 30 PSI boost)
  • Fuel pressure sensor (1/8″ NPT, 100 PSI default but other PSI ratings available)
  • Ambient (outside) temperature sensor

Diesel Sensor Kit:

  • Coolant Temperature Sender (1/8″ NPT)
  • Additional temp sensor (1/8″ NPT), typically used for oil or transmission temperature
  • Exhaust Gas temp sensor (1/8″ NPT)
  • Oil Pressure Sender (1/8″ NPT)
  • Boost Sensor (1/8″ NPT, up to 100 PSI) and 6ft harness
  • Fuel pressure sensor (1/8″ NPT, 100 PSI default but other PSI ratings available)
  • Ambient (outside) temperature sensor
